Description
Product Description

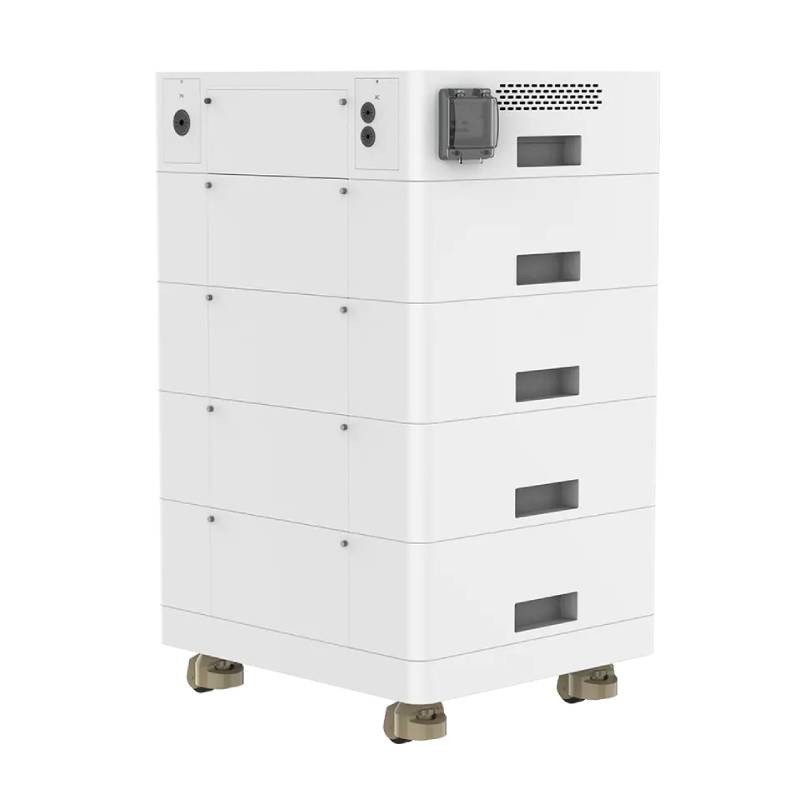

About Stacked Energy Storage
The
stack mounted Lithium batteries reduce your reliance on the grid by
storing your solar energy for use when the sun is not shining. This
series brought to you by our highly qualified research and development
team provides an ultra-long service life and extreme reliability in
energy storage. Based on our battery technical features of excellent
performance on higher temperatures,higher capacity range, lighter
weight, and pollution-free operation, our LiFePO4 battery is widely
popular by users with a rapid development stance. It is the first choice
for the high-requirement energy storage battery solution.
More Safe
The
built-in battery management system integrates with multilevel safety
features including overcharge and deep discharge protection, voltage and
temperature observation, over current protection, cell monitoring, and
balancing, and over-heat protection.
Product Parameters
Specifications
Type
LX-R5000WP1
LX-R5000WP2
LX-R5000WP3
LX-R5000WP4
LX-R5000WP5
LX-R5000WP6
LX-R5000WP7
Battery Module Type
LX-R5000WP
Modules in Series
1
2
3
4
5
6
7
Rated Voltage, V
51.2
Rated Capacity, Ah
100
Voltage Range, V
44.8 - 56
Rated Energy, Wh
5,120
10,240
15,360
20,480
25,600
30,720
35,840
Max.
Charge & Discharge
Current, A
100
Physical
Dimension, L*W*H mm
670*430*420
670*430*420
670*430*580
670*430*740
670*430*900
670*430*1060
670*430*1220
Weight, kg
60
110
160
210
260
310
360
Communication Port
RS485, CAN
Display
LED + LCD
Terminal
Quick Plug-in
Compatible inverter
Growatt, Goodwe, Sol-Ark, Deye etc.
Environment
Ingress Protection
IP55
Charge Temperature Range, ºC
0~45
Discharge Temperature Range,ºC
-20 - 60
Installation Method
Floor - mount
Service Life
Cycle Life
>6,000 ( 0.5C @25ºC,60% DOD)
Design Life, Year
15
Certification
Safety & Certification
CE, EMC, TUV (IEC62619)
Transportation
UN38.3

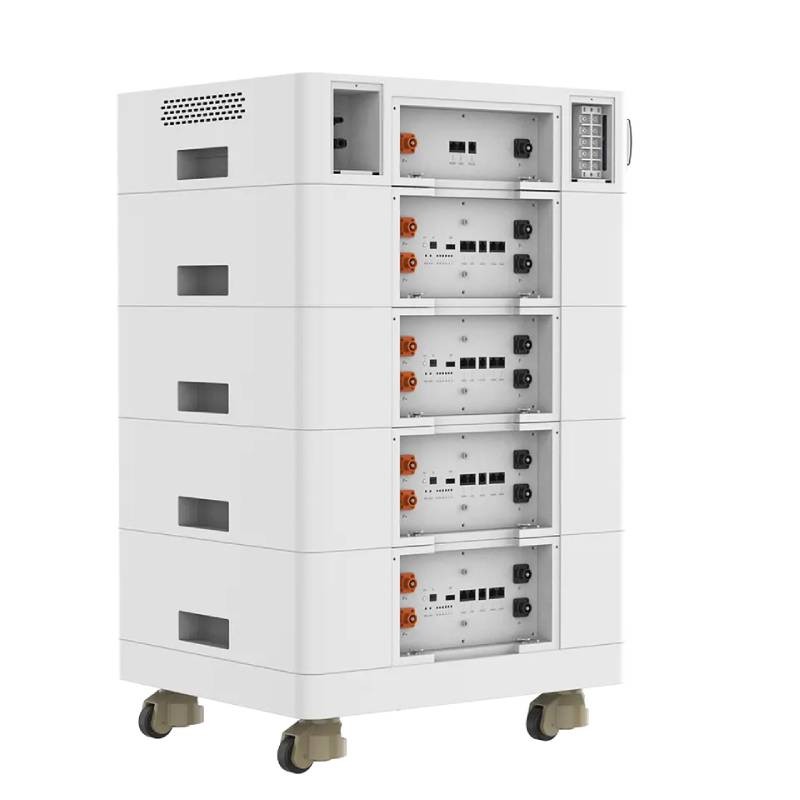

Stackable Combination ModeStackable batteries take up much less space than wall-mounted Powerwalls, making them a good choice for residential energy storage.
Efficient Power
LiFePO4
battery's flat discharge curve holds above 12V for up to 90% of its
capacity usage providing astronomical boosts in run-time compared to
only 50% in Lead Acid. This product is your best choice for outdoor
camping power and indoor easy installation.
